View Iron Carbon Equilibrium Diagram With Explanation US. The main microscopic constituents of iron and steel are as follows: Cementite • this is a compound of iron and carbon.

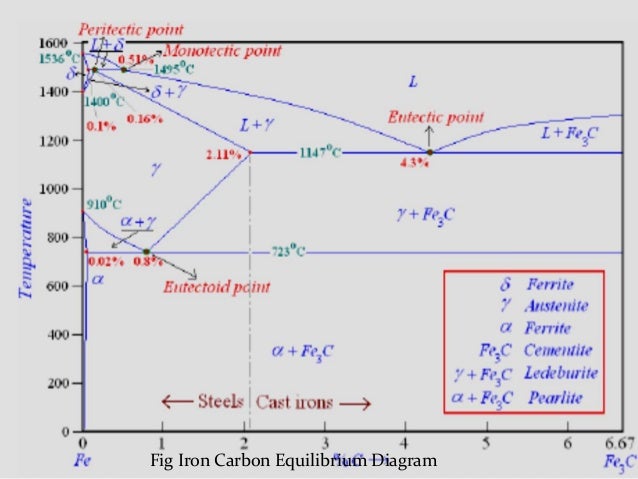

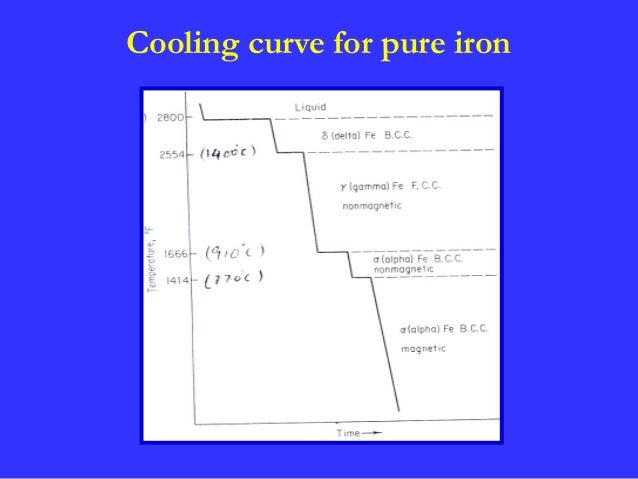

Iron iron carbon equilibrium diagram from image.slidesharecdn.com

Cementite • this is a compound of iron and carbon. It is a hard, brittle material. Alloy metals can exist in different phases.

This diagram is limited by pure iron on the left and by iron carbide on the right.

• it is called iron carbide (fe3c). So let's start with a phase diagram that contains maximal information This diagram is limited by pure iron on the left and by iron carbide on the right. In particular, there is some nomenclature that i avoided in the main text but that is important for understanding other writings about iron and steel.

Source: i0.wp.com

During cooling, austenite of 0.77% c, at a temeprature 725oc undergoes eutectoid transformation and forms a eutectoid a mixture of ferrite and cementite, known as pearlite.

Source: www.codecogs.com

We have grey cast iron.

Source: www.researchgate.net

The main microscopic constituents of iron and steel are as follows:

Source: i.ytimg.com

Aircraft engineering and aerospace technology.

Source: d2vlcm61l7u1fs.cloudfront.net

Published by esther adams modified over 5 years ago.

Source: i.ytimg.com

The edge is usually explained as resulting from the coexistence of melted and unmelting.

Source: image.slidesharecdn.com

During cooling, austenite of 0.77% c, at a temeprature 725oc undergoes eutectoid transformation and forms a eutectoid a mixture of ferrite and cementite, known as pearlite.

Source: 4.bp.blogspot.com

Phases are physically homogeneous states of an alloy.
